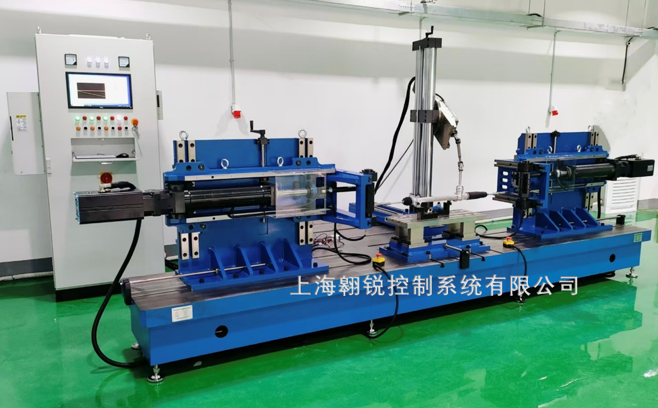

轉向系統三軸疲勞試驗機

Steering 3-Axis Durability Test Equipment

產品概述/ Product Overview

轉向系統三軸疲勞試驗機用于驗證和測試汽車轉向系統及零部件的疲勞和耐久性能。有效的控制精度，使得用戶可以在實驗室環境內對轉向系統模擬加載現實路況下的各種動態負荷。

This 3-axis test equipment is designed to test and validate the durability and performance of automotive steering components by applying real-world dynamic loading to components, including LH & RH rack force, and steering torque.

產品特點/Features

●    滿足國際OEMs的試驗規范要求/ Meet international OEMs requirement

●    全電動伺服（無液壓）/ Full electric servo system(without hydraulic)

●    有效的控制精度 / First class control accuracy

●    節能（耗能僅為同類液壓伺服設備的1/10）/ Energy saving(only 1/10 of  energy consumption of hydraulic servo system)

●    任意試驗曲線編輯和組合 / Arbitrary test curve compilation & combination

●    維護成本低 / Low maintenance cost

●    無污染 / pollution-free

●    占地面積小 / Small space occupation（1.5M*4M）

參數/Parameters

●    最大轉向角速度/Max Steering Angle: 1000°/S

●    最大轉向扭矩/Max Steering Torque: 100NM

●    最大齒條加載力/Max Rack Force: 20kN

●    最大齒條加載速度/Max Rack Speed: 1M/S
